Vortex solid carbide spiral tooling is a great option for a variety of applications. It offers good wear resistance and high temperatures tolerance, which makes it a good choice for manufacturing parts that require high temperatures or tough materials. Additionally, vortex solid carbide spiral tooling is easy to use, making it a popular choice for those who are not experienced in machining.
types of vortex solid carbide spiral tooling
Vortex Solid Carbide spiral tools create the best edge qualities of ANY cutting tool design available. Also, solid carbide router bits produce outstanding edge qualities at the fastest rates possible with any routing tool. We took the following information on these mentioned spiral tooling from the Vortex Tool Company catalog:

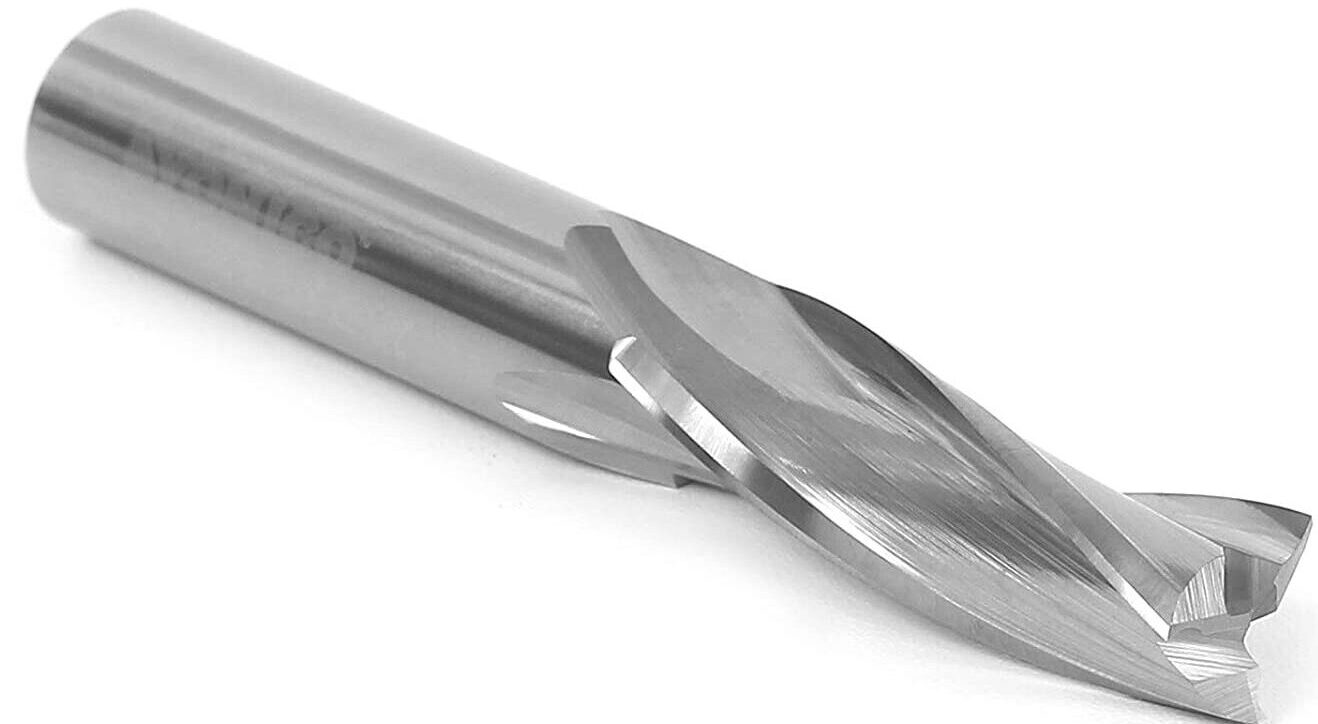

Upcut Spiral Bit
- This is a right-hand up-cut spiral bit with a right-hand rotation cut. The up-cut spiral will cause the chips to be “augered” upwards during cutting. This is particularly useful in slotting cuts or where chip removal is a problem. Upcut spiral bits tend to “lift” the part in some cases. Therefore, additional holding power or stepped cutting depths may be required.
- Solid Carbide up-cut spiral bits will leave a smooth cut on the bottom of a thru cut and tend to leave some fuzzing on the top edge in certain materials.
- Upcut spirals straight plunge/drill and has good end cutting geometry.

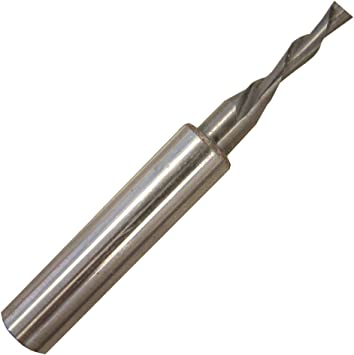

Downcut Spiral Bit
- A down-cut spiral ( right or left hand) will have a downward chip flow to help hold down the stock. The edge quality on the part is smooth on top and tends to be fuzzy on the bottom of certain materials.
- The downward chip flow can sometimes cause clogging problems, particularly in a blind slotting situation. On the other hand, down-cut bits tend to preload the routing system and can substantially improve part hold down in marginal routing setup.
- We can not use down-cut tools to plunge straight into the wood.
Compression Spirals
- A compression spiral is designed with up-cut and down-cut flutes. The up-cut and down-cut flutes compress the cut material, preventing chipping or fuzzing on the top and bottom of the cut.
- Compression spirals are used extensively for cutting double-sided laminates but can be used on natural woods where edge fuzzing is a problem.
Purpose of Vortex Solid Carbide Spiral Tooling
Solid carbide spiral tooling has been widely used in the machining of various materials for a long time now. In fact, it is one of the most commonly used types of tooling because its high accuracy and consistency. Vortex solid carbide spiral tooling is a type of solid carbide spiral tooling that uses vortex shedding to create the cutting edges on the tools. This technology provides superior cutting performance and accuracy than other types of spiral tooling. Here are some reasons why this type of tooling is so popular:
- It offers high precision and consistency across all axes. This means that the cuts will be precise, right down to the smallest detail.
- The vortex shedding process creates very sharp cutting edges that are resistant to wear and tear.
- it can be used in manufacturing processes that require high accuracy and repeatability.
- vortex solid carbide spiral tooling can reduce machining time and ensure accurate parts.
- it is often used in industries that require high-strength materials.
- vortex solid carbide spiral tooling is durable and is able to handle aggressive cutting conditions.
Benefits of vortex solid carbide spiral tooling
A vortex solid carbide spiral tooling is a type of tooling that has revolutionized the machining process. Benefits of vortex solid carbide spiral tooling include:
- Increased productivity due to better accuracy and less downtime.
- Reduced machining time as the machine’s speed can be increased without sacrificing quality.
- Reduced wear and tear on the tools and machinery, as chips are eliminated from the cutting process.
- Enhanced safety due to reduced risk of injury or machines coming into contact with moving parts.
What are some applications of vortex solid carbide spiral tooling?
The application of vortex solid carbide spiral tooling has seen a drastic increase in recent years due to its numerous benefits. Vortex solid carbide spiral tooling is often used in the manufacturing of high-precision parts and components due to its accuracy, durability, and low cost. Here are some of the most common applications of vortex solid carbide spiral tooling:
- Precision machining: vortex solid carbide spiral tooling is often used for precision machining due to its accuracy and durability. These features make it perfect for tasks such as cutting, drilling, and threading.
- Machining hard materials: Another common use for vortex solid carbide spiral tooling is machining hard materials, such as steel and titanium.
- Milling: Vortex solid carbide spiral tooling is also great for milling various materials, such as plastics and composites. This type of machining helps to achieve precision results while saving on time and money.
In automotive manufacturing, vortex solid carbide spiral tooling is used to create complex shapes without having to use a lot of labor. This is because the tool can create intricate designs quickly and accurately. In aircraft manufacturing, vortex solid carbide spiral tooling is often used to form parts that are difficult to reach or make with other types of tools. This is because the spirals help to reduce friction between the part and the tool, which makes it easier for the worker to move the part around and make adjustments.
Conclusion
In conclusion, using vortex solid carbide spiral tooling can result in a more accurate and efficient product. The benefits of using this type of tooling are numerous, so it is definitely worth considering if you are looking to improve your manufacturing process. If you’re looking for an affordable, reliable solution that will help you save time and money, vortex solid carbide spiral tooling is the perfect choice for you!
